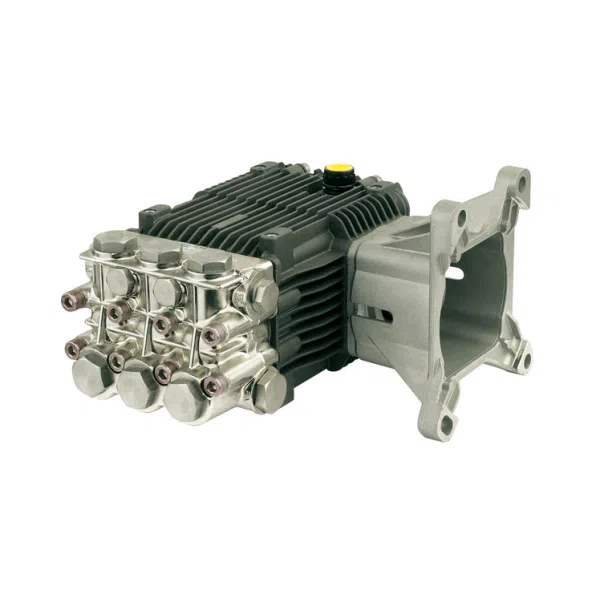

RKV3.5G40 Annovi Reverberi Hollow Shaft Pump
3400 RPM ideal to be driven directly by an Engine. Pump has 1″ hollow shaft.
13.2 Litres per minute @ 275 Bar / 4000 PSI
7.5 HP required to run at full pressure
- 3-piston alternating volumetric pumps for use on cleaning units and industrial systems. Hollow shaft version with flange F41 included for gasoline engine ø1″SAE J609a.
- Pump body and cover in die-cast aluminium alloy.
- Rear cover with oil drain outlet and oil sight glass. Cap with dipstick for oil level on body pump.
- Pistons driven by crank-connecting rod mechanism.
- Pump shaft in pressed high-strength steel.
- Oversized friction bearings.
- Connecting rods in bronze.
- One-piece ceramic pistons.
- Pump head in nichel-plated brass with valves cups in stainless steel.
- Double gasket sealing system.
- Intake and delivery valves have plugs for easier maintenance.
Popular Spares:
Kit 1828 (Valve kit)
Kit 1857 (Water Seals)
Kit 1586 (Oil Seals)
Kit 2757 (Pistons x 3)
