High Temperature A&R Pump

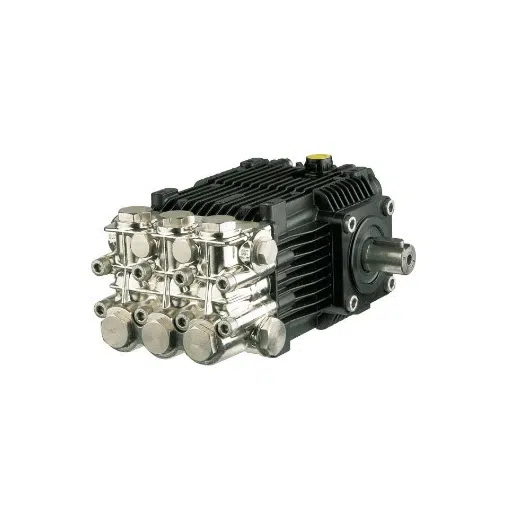

RHW15.15 High Temperature Annovi Reverberi Pump

High Temperature pump suitable for water up to 85°c

1450rpm, solid shaft

15 litres per minute @ 150 bar / 2200 psi Max

3-piston reciprocating pumps for use on cleaning units and industrial systems operating with hot water. Pump body, end plate and side covers in die-cast aluminium with protective electro-phoresis coating. Pressed nickel-plated brass head for even greater protection and resistance in moderately aggressive atmospheres. Pistons driven by crank-connecting rod mechanism. Connecting rods in bronze. Double PTFE gasket sealing system to minimise any water leaks. Shaft in heat-treated pressed steel for excellent mechanical strength. Oversized friction bearings. One-piece ceramic pistons.

Common Spares Available

Valve Kit: Kit 42328
Water Seal Kit: Kit 42329
Oil Seal Kit: Kit 1855
Piston Kit: Kit 2500
