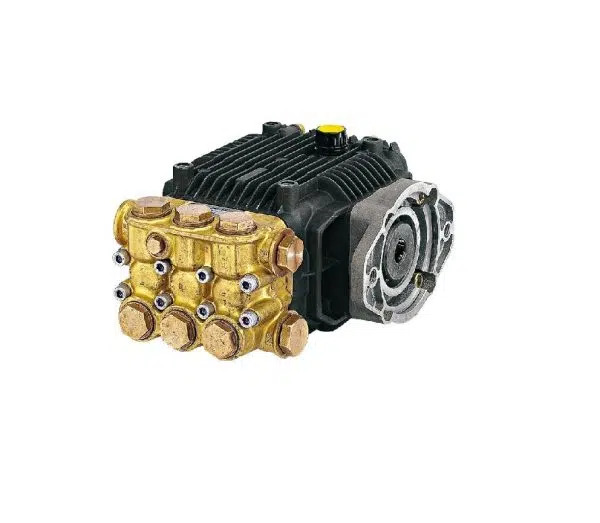

HYD-XM15.15 Hydraulic Drive Pump

HYD-XM15.15 Hydraulic Drive Pump

Hydraulic drive pump with F38 flange suitable for coupling to hydraulic motors

1450rpm, solid shaft

15 litres per minute @ 150 bar / 2200 psi Max

3-piston alternating volumetric pumps for use on cleaning units and industrial systems. Can be coupled to hydraulic motors. Pump body and cover in die-cast aluminium alloy. Rear cover with oil drain outlet, or incorporate oil sight glass. Pistons driven by crank-connecting rod mechanism. Pump shaft in pressed high-strength steel. Oversized friction bearings. Connecting rods in die-cast special low-friction zinc-aluminium alloy. Bronze connecting rods available. One-piece ceramic pistons. Pump head in pressed brass. Double gasket sealing system. Pump head internal components may be in different materials depending on application. Intake and delivery valves have plugs for easier maintenance. Various regulator valves and accessories can be connected to the pump head.

Common Spares Available

Valve Kit: Kit 864
Water Seal Kit: Kit 2747
Oil Seal Kit: Kit 2787
Piston Kit: Kit 2746
