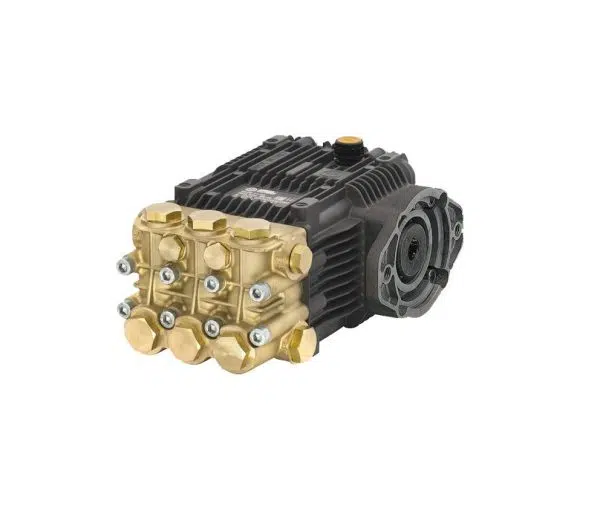

HYD-RK15.20 Hydraulic Drive Pump

HYD-RK15.20 Hydraulic Drive Pump

Hydraulic drive pump with F38 flange suitable for coupling to hydraulic motors

1450rpm, solid shaft

15 litres per minute @ 200 bar / 2900 psi Max

3-piston alternating volumetric pumps for use on cleaning units and industrial systems. Pump body and cover in die-cast aluminium alloy. Rear cover with oil drain outlet and oil sight glass. Pistons driven by crank-connecting rod mechanism. Pump shaft in pressed high-strength steel. Oversized friction bearings. Connecting rods in die-cast special low-friction zinc-aluminium alloy. Bronze connecting rods available. One-piece ceramic pistons. Pump head in pressed brass. Double gasket sealing system. Various types of gasket system available depending on application. Intake and delivery valves have plugs for easier maintenance. Various regulator valves and accessories can be connected to the pump head.

Common Spares Available

Valve Kit: Kit EX-2686
Water Seal Kit: Kit EX-1857
Oil Seal Kit: Kit EX-1856
Piston Kit: Kit EX-2757
